cumulative distribution function

The CDF of a real-valued random variable \[X\] is the function given by \[F_{X}(x)=P(X\le x)\], i.e. the probability that \[X\] takes on a value less than or equal to \[x\].

With this definition, we can calculate the probability that \[X\] lies in the semi-closed interval \[\left(a,b\right]\] where \[a<b\], as \[P(a<x\le b)=F_{X}(b)-F_{X}(a)\]. Note that the \[\le\] sign is just a convention to allow proper use of tables of distributions such as the binomial and Poisson.

If \[X\] is a discrete random variable with possible outcomes \[\mathcal{X}\] and the PMF \[f_{X}(x)\], then the CDF is defined as \[F_{X}(x)=\sum_{t\in \mathcal{X}\text{ and }t\le x}f_{X}(t)\].

Similarly, if \[X\] is a continuous random variable with possible outcomes \[\mathcal{X}\] and the PDF \[f_{X}(x)\], then the CDF is defined as \[F_{X}(x)=\int_{-\infty}^{x}f_{X}(t)\,dt\]. Then, by fundamental theorem of calculus, we can find the PDF by differentiating the CDF as such, \[f_{X}(x)=\frac{d}{dx}F(x)\].

Let a PDF \[f_{X}(x)\] be defined as \[f_{X}(x)=\begin{cases}x,&\text{for $0\le x<1$}\\2-x,&\text{for $1<x\le2$}\\0,&\text{otherwise}\end{cases}\], then to find \[F_{X}(x)\] by working over the intervals that \[f_{X}(x)\] has different formulas.

\begin{align*} \text{for $x<0$:}&\quad F(x)=\int_{-\infty}^{x}0\,dt=0\\ \text{for $0\le x\le 1$:}&\quad F(x)=\int_{0}^{x}t\,dt=\frac{x^{2}}{2}\\ \text{for $1<x\le 2$:}&\quad F(x)=\int_{0}^{1}t\,dt+\int_{1}^{x}(2-t)\,dt\\ \text{for $x>2$:}&\quad F(x)=\int_{-\infty}^{x}f(t)\,dt=1\\ \end{align*}

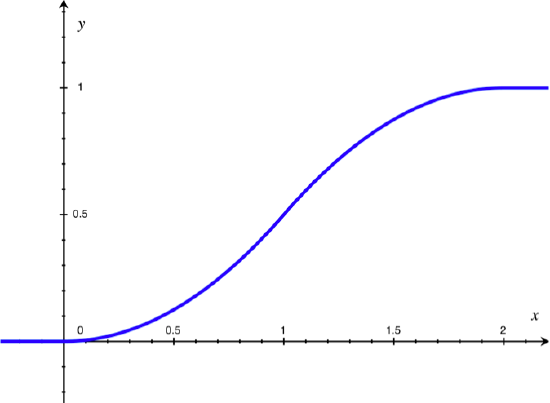

Therefore, \[F_{X}(x)=\begin{cases}0,&\text{for $x<0$}\\ \frac{x^{2}}{2},&\text{for $0\le x\le 1$}\\ 2x-\frac{x^{2}}{2}-1,&\text{for $1<x\le 2$}\\ 1,&\text{for $x>2$}\end{cases}\].
